90bar High Pressure Pump with 7.5KW
  • 90bar High Pressure Pump with 7.5KW 90bar High Pressure Pump with 7.5KW

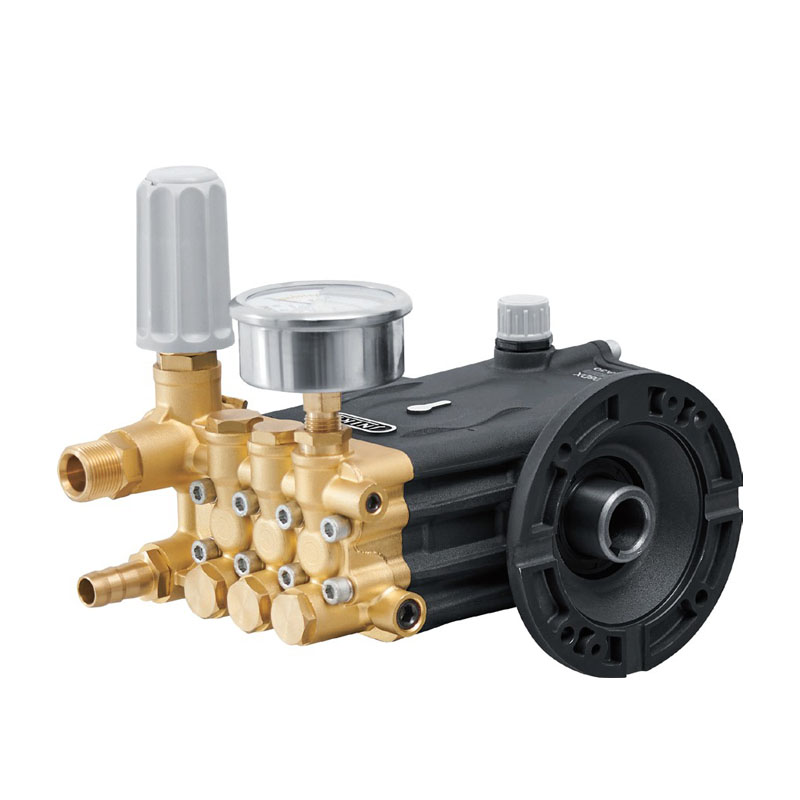

90bar High Pressure Pump with 7.5KW

Each 90bar high pressure pump with 7.5kw has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.
Model:JNK-1108D

Send Inquiry

Product Description

90bar high pressure pump with 7.5kw uses the third-generation high-pressure plunger pump independently developed by our company, with an all-copper pump head design and ceramic plunger. Each high-pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.

SPECIFICATIONS

Model

JNK-1108D

Flow Volume(L/min)

10

Motor Voltage(KW)

7.5

Pressure(bar)

90

Rotary Speed(rpm)

2800

Piston Diameter(mm)

14

Crankshaft Travel(mm)

8

Crankshaft Diameter(mm)

19 (Inner shaft)

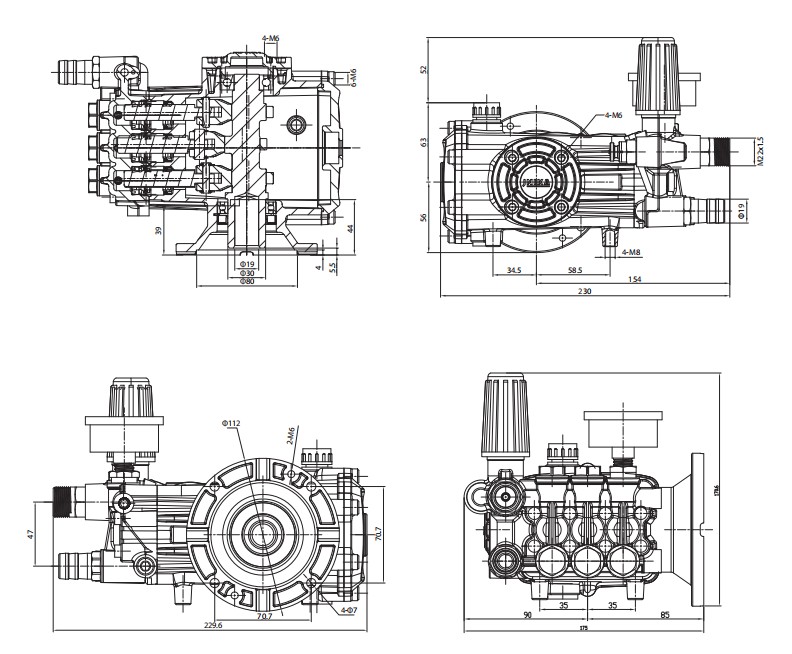

Connection Diagram

90bar high pressure pump with 7.5kw
