300bar High Pressure Pump with 10KW
  • 300bar High Pressure Pump with 10KW 300bar High Pressure Pump with 10KW

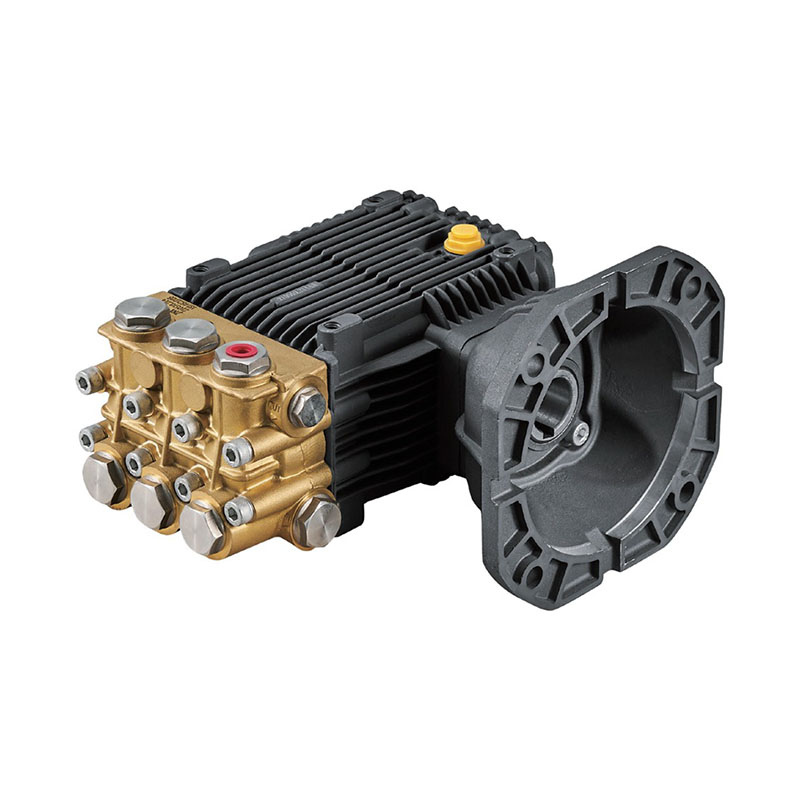

300bar High Pressure Pump with 10KW

Each 300bar high pressure pump with 10kw has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes.
Model:JNK-1530D

Send Inquiry

Product Description

300bar high pressure pump with 10kw uses the third-generation high-pressure plunger pump independently developed by our company, with an all-copper pump head design and ceramic plunger. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.

Technical Data

Model

JNK-1530D

Flow Volume(L/min)

16

Motor Voltage(KW)

10

Pressure(bar)

300

Rotary Speed(rpm)

1450

Piston Diameter(mm)

18

Crankshaft Travel(mm)

14

Crankshaft Diameter(mm)

28 (Inner shaft)

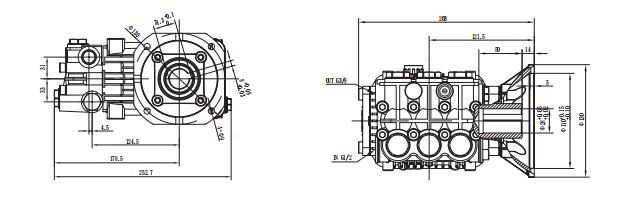

Connection Diagram

300bar high pressure pump with 10kw
