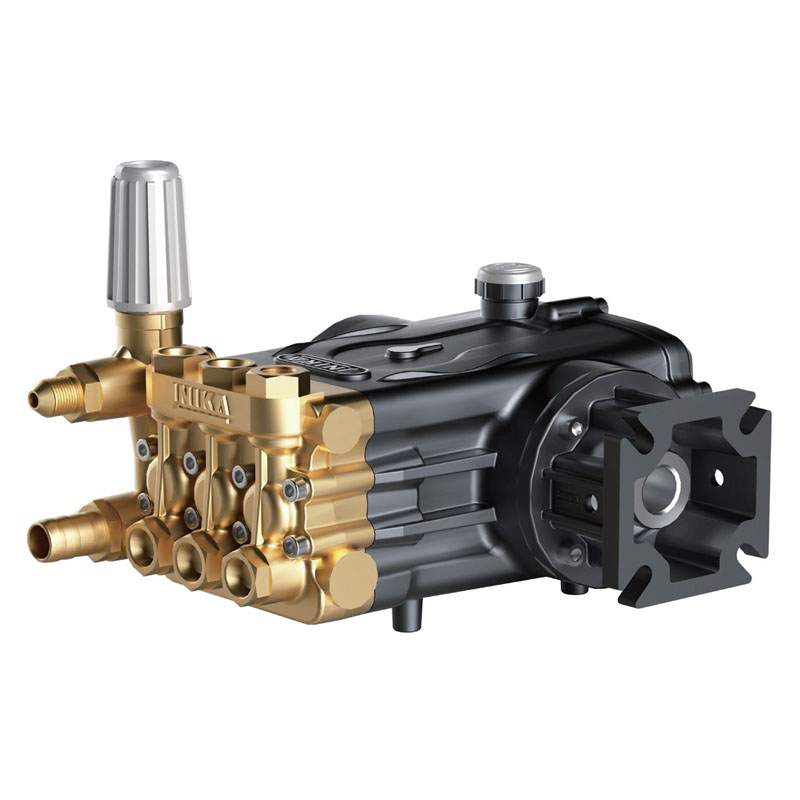

3400rpm High Pressure Pump
Each 3400rpm high pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes.
Model:JNK-1615Q
Send Inquiry
Product Description
All 3400rpm high pressure pumps use the third-generation high-pressure plunger pump independently developed by our company, with an all-copper pump head design and ceramic plunger. Each high-pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.
Technical Data
|
Model |
JNK-1615Q |
|
Flow volume(L/min) |
16 |
|
Pressure(bar) |
150 |
|
Horse power(HP) |
7 |
|
Rotary Speed(rpm) |
3400 |
|
Piston Diameter(mm) |
18 |
|
Crankshaft Travel(mm) |
6 |
|
Crankshaft Diameter(mm) |
19.05 (Inner shaft) |

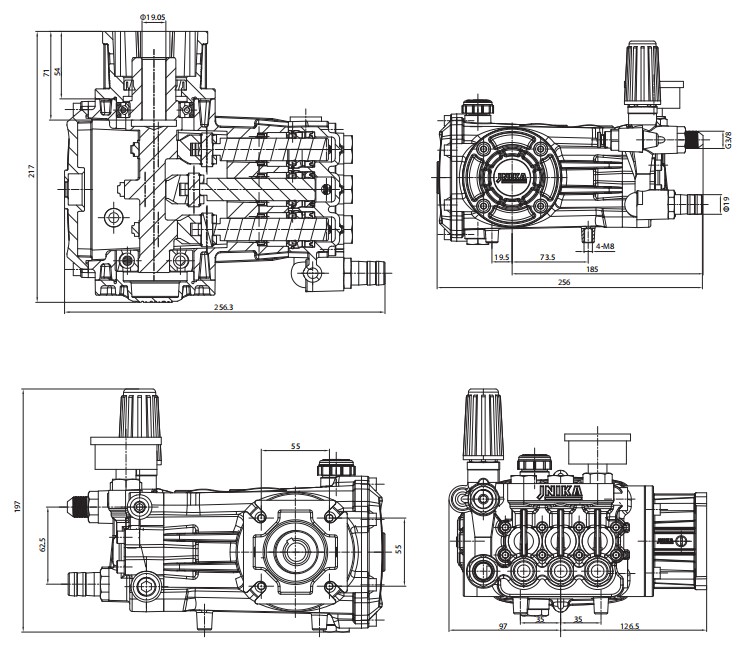

Connection Diagram
Hot Tags: 3400rpm High Pressure Pump
Send Inquiry
Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.
