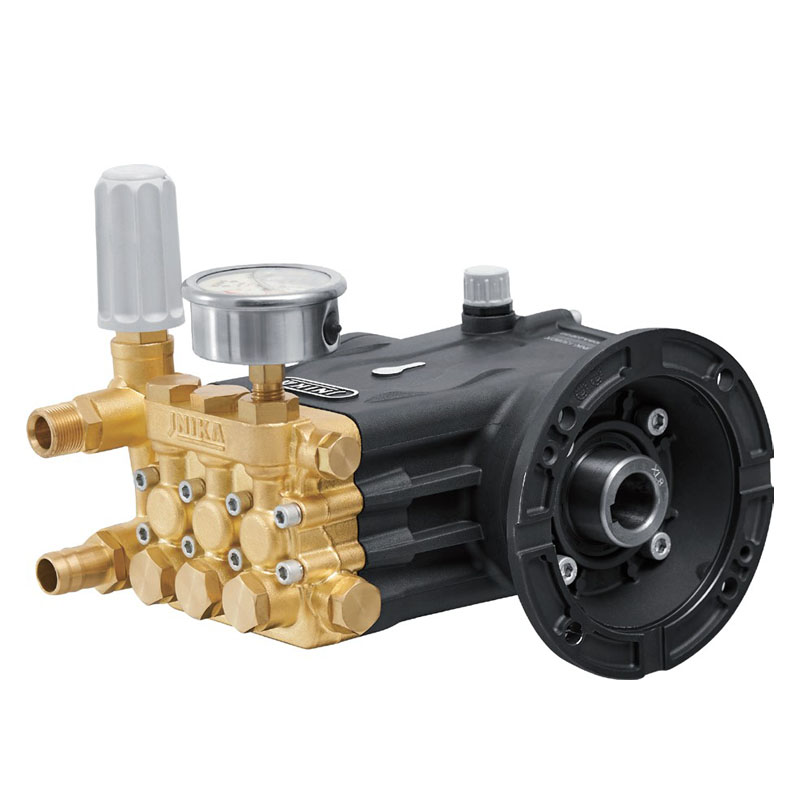

2.5KW High Pressure Pump

Each 2.5KW high pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.

Model:JNK-1113D

Send Inquiry

Product Description

All high-pressure cleaners use the third-generation high-pressure plunger pump independently developed by our company, with an all-copper pump head design and ceramic plunger. Each high-pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.

Technical Data

Model	JNK-1113D	JNK-1511D
Flow volume(L/min)	11	15
Pressure(bar)	130	80
Motor Voltage(KW)	2.5
Rotary Speed(rpm)	1450
Piston Diameter(mm)	18
Crankshaft Travel(mm)	9	14
Crankshaft Diameter(mm)	24 (Inner shaft)
