13-7HP High Pressure Pump
  • 13-7HP High Pressure Pump 13-7HP High Pressure Pump

13-7HP High Pressure Pump

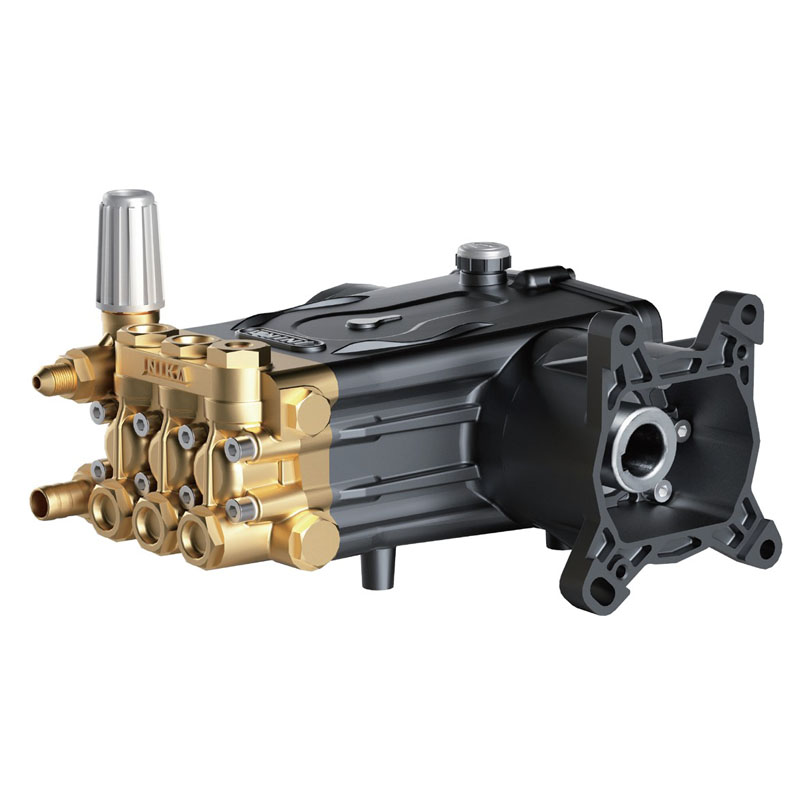

13-7HP High Pressure Pump uses the third-generation high-pressure plunger pump independently developed by our company, with an all-copper pump head design and ceramic plunger.

Send Inquiry

Product Description

Each 13-7HP high pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.

SPECIFICATIONS

Technical data

Model

JNK-1825Q

JNK-3119Q

JNK-3915Q

Flow volume(L/min)

18

31

39

Pressure(bar)

250

190

150

Horse power(HP)

13-7

Rotary Speed(rpm)

3400

Piston Diameter(mm)

18

Crankshaft Travel(mm)

7

12

15

Crankshaft Diameter(mm)

25.4 (Inner shaft)

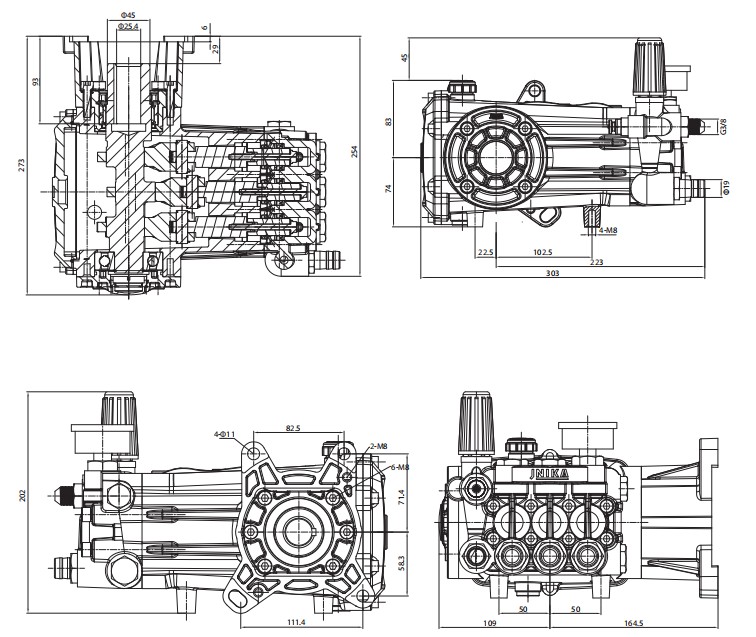

Connection Diagram

13-7HP High Pressure Pump
