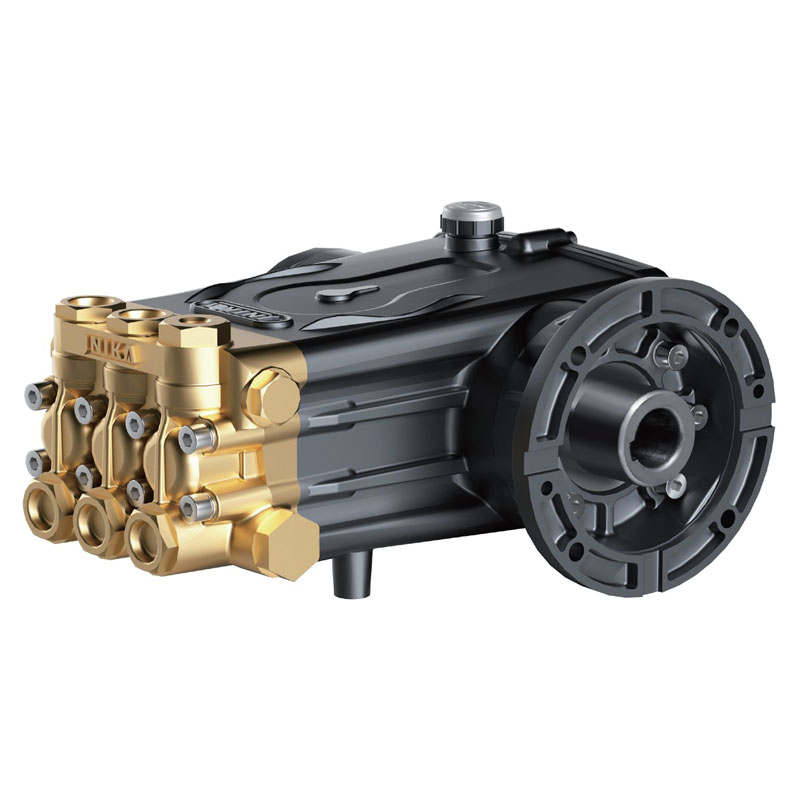

11KW High Pressure Pump
Our 11KW high pressure pumps use the third-generation high-pressure plunger pump independently developed by our company, with an all-copper pump head design and ceramic plunger.
Model:JNK-2030DFX
Send Inquiry
Product Description
Each 11KW high pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.
SPECIFICATIONS
|
Model |
JNK-2030DFX |
JNK-2525DFX |
JNK-3020DFX |
|
Flow volume(L/min) |
20 |
25 |
30 |
|
Pressure(bar) |
300 |
250 |
200 |
|
Motor Voltage(KW) |
11 |
||
|
Rotary Speed(rpm) |
1450 |
||
|
Piston Diameter(mm) |
18 |
20 |
22 |
|
Crankshaft Travel(mm) |
18 |
||
|
Crankshaft Diameter(mm) |
28 (Inner shaft) |
||

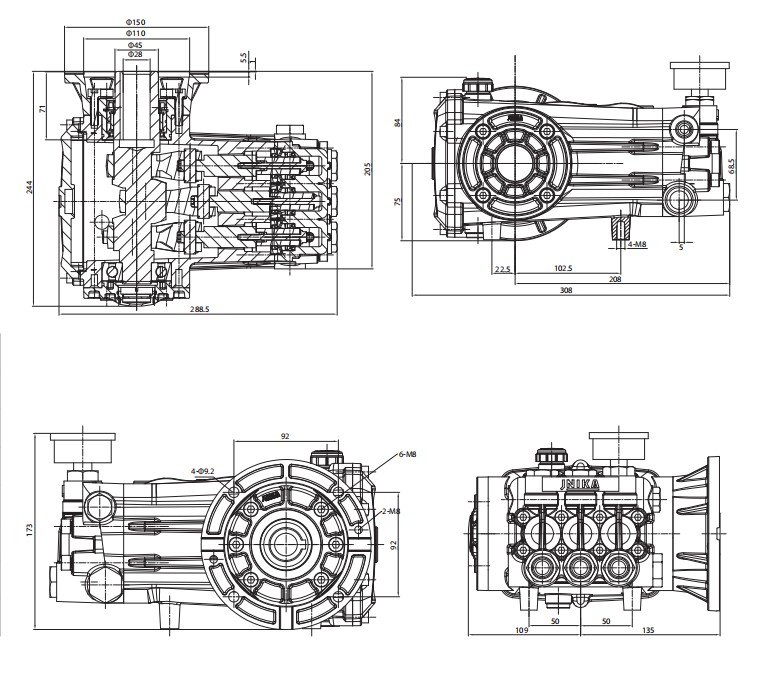

Connection Diagram
Hot Tags: 11KW High Pressure Pump
