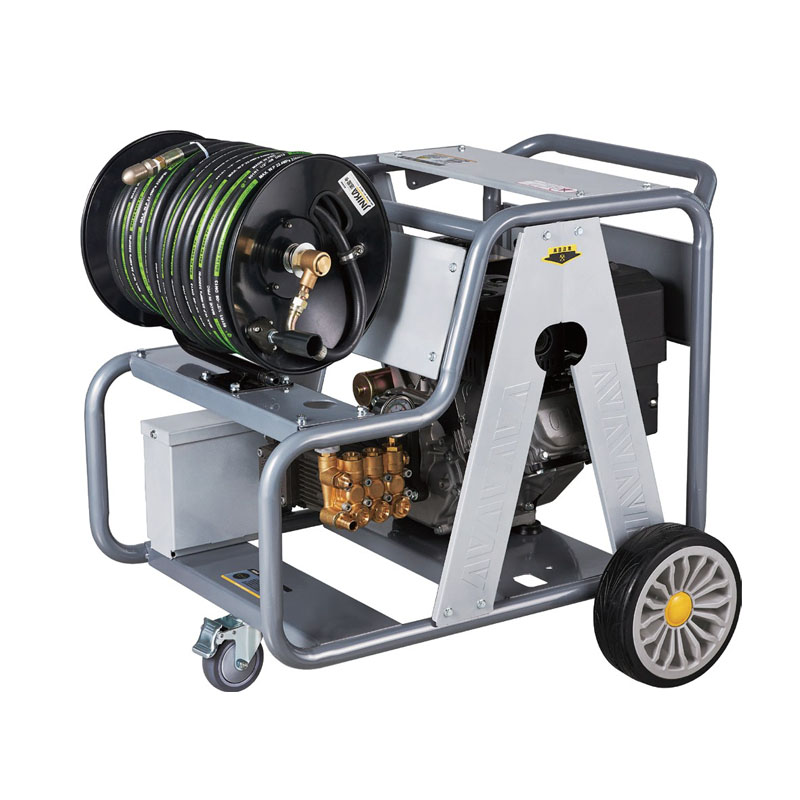

Srpski језик The intuitive operation, compact dimensions and guarantee comfortable handling. The 3400rpm Gasoline Pipe Dredge Machine is made of forged brass and ceramic plungers. Durable wheels make the machine easy to maneuver over obstacles and up and down stairs, suitable for movement in various work environments. Service-friendliness is an additional bonus. The machine features easy access to all relevant machines parts.
① The gasoline sewer dredging machine is cordless, does not require electricity , and is suitable for outdoor operations
② Its patented design product has obtained the CE certificate
③ It has fast desilting speed, strong cleaning power, and high-quality high-pressure pump and motor continue to provide stable power
④ The machine has a long service life. Low cost and easy to operate
⑤ The gasoline sewer drainage cleaning machine is widely used in dredging and cleaning industrial pipelines, municipal pipelines, and household pipelines.
① The voltage is customized as required
② The electric plug is customized as required
③ The water inlet and outlet length is customized as required
The logo and packaging are customized according to the minimum order quantity
Technical data
|
Model |
JNK-ZY-1525TQ |
JNK-ZY-1727TQ |
JNK-ZY-1331TQ |
JNK-Zy-1740TQ |
|||||||||
|
House power(HP) |
7 |
15 |
17 |
13 |
17 |
||||||||
|
Rotary Speed(rpm) |
3400 |
||||||||||||
|
Rated Pressure (bar/PSI) |
150/2175 |
250/3625 |
270/3915 |
150/2175 |
|||||||||
|
Max Pressure(bar/PSI) |
160/2320 |
270/3915 |
290/4205 |
170/2465 |
|||||||||
|
Flow Volume(L/min /GPM) |
16/4.22 |
18/4.75 |
31/8.2 |
40/10.55 |
|||||||||
|
Speed reducer |
/ |
||||||||||||
|
Nozzle Model |
050 |
040 |
110 |
145 |
|||||||||
|
Pump Model |
JNK-1615QC |
||||||||||||
|
Package Size(L*W*H)cm |
81*63*88 |
91*78*95 |
|||||||||||
|
Loading Weight(kg) |
77 |
138 |
|||||||||||
1. JNK 380 kgs high pressure water gun with quick connector 3/8
2. 20 meters standard configuration high pressure water outlet pipe inner
3. Spark plug sleeve
4. 3 Meters inlet water pipe of material of 3 layers rubber, 3lines and 1 steel wire, with 304 double stainless steel filter mesh
5. nozzles, metal head GZG3/8, ZG3/8, copper quick connector
1. community pipe dredge cleaning
2. Roads pipe dredge cleaning
3. Irrigation pipe cleaning
4. Public duct cleaning
5. PACKAGE
