150bar High Pressure Pump

Each 150bar high pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.

Model:JNK-5215D

Send Inquiry

Product Description

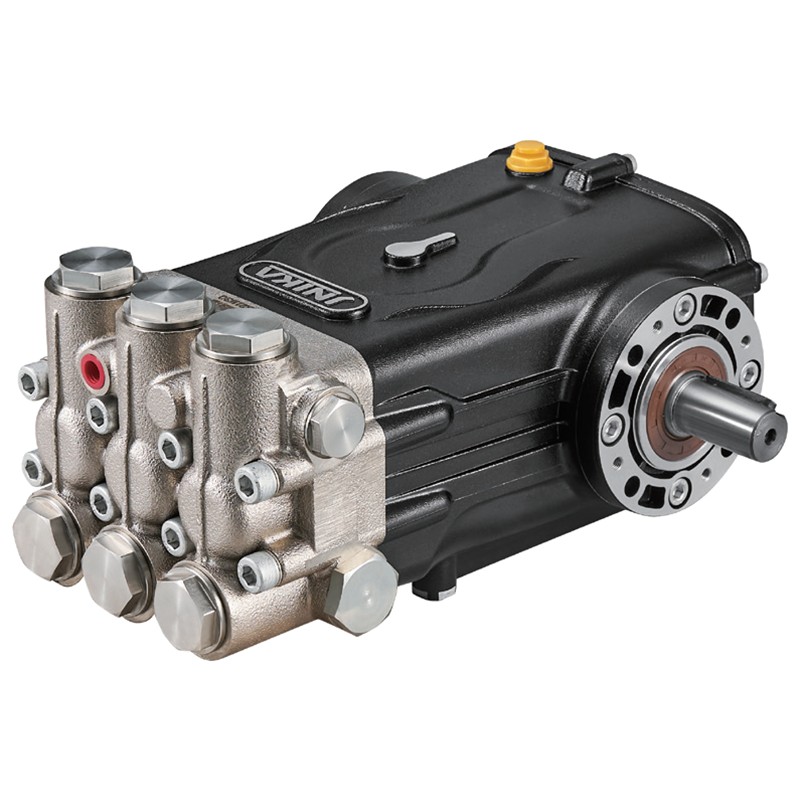

All 150bar high pressure pumps use the third-generation high-pressure plunger pump independently developed by our company, with an all-copper pump head design and ceramic plunger. Each high-pressure pump has undergone 3,700 hours of different pressure tests and can be started at low pressure, and Keep the pressure constant even when the voltage changes. Compared with the first and second generation pumps, the third generation high pressure pump has the characteristics of small size, high pressure, low noise and longer service life.

SPECIFICATIONS

Model	JNK-5215D	JNK-7215D
Flow Volume(L/min)	52	72
Motor Voltage(KW)	15	22
Pressure(bar)	150
Rotary Speed(rpm)	1450
Piston Diameter(mm)	28	32
Crankshaft Travel(mm)	21
Crankshaft Diameter(mm)	24 (Outer shaft)
